Pump Stations
Retrofitting and Upgrading
| |

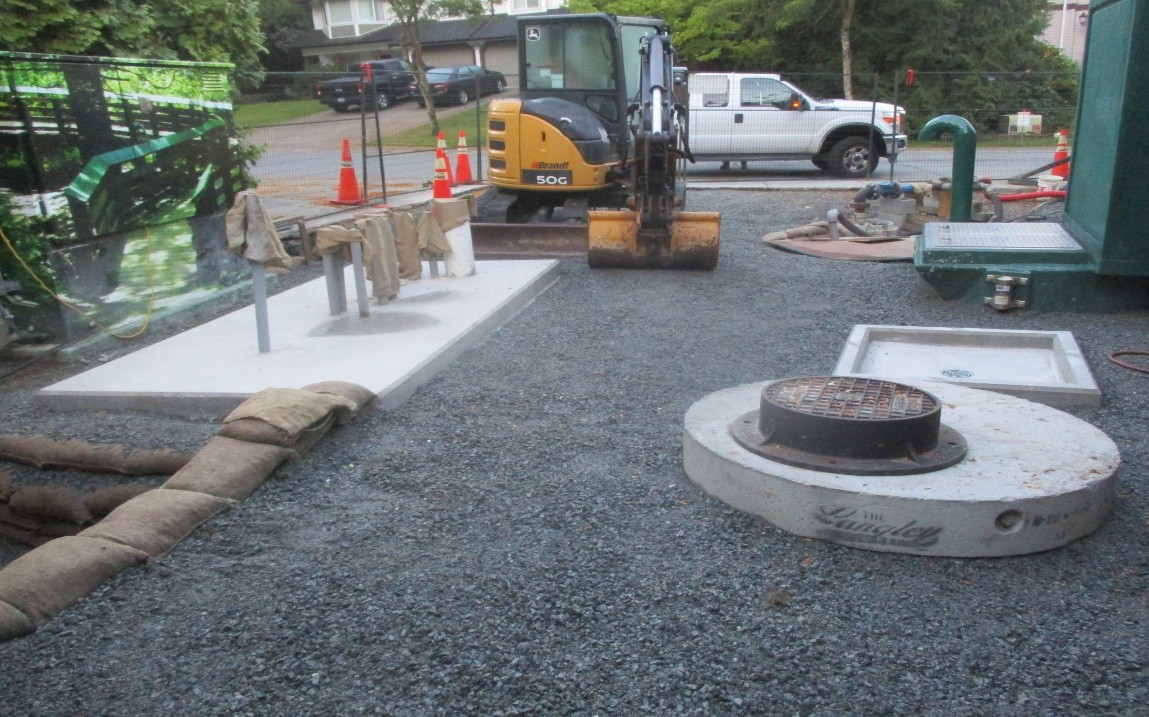

214B Street Sewer Lift Station Upgrades, Township of Langley
Owner: Township of Langley
Consultant: ECORA Engineering
Description: Upgrade of an existing sanitary pump station. A new 1.8m diameter FRP lift station was inserted into the existing steel station which was decommissioned and had the top cut off. Work was done with a bypass pump system managing the flows while the station was off line. The scope of work also included supply and install of a new electrical kiosk.
| |
Cliveden Avenue Sanitary Pump Station Upgrade, City of Delta
Owner: City of Delta
Consultant: Stantec Consulting Ltd
Description: Upgrade of existing sanitary concrete wet well pump station, including wet-well relining with HDPE panels, installation of new stainless-steel piping, a new FRP platform and a new lid with an aluminum hatch. Supply and installation of a new precast below ground chamber for all the 200mm valves and piping, and a new electrical kiosk. A two location bypass pumping system was operated and maintained for duration of eight month project.
| |
Cotton B Sanitary Lift Station, District of West Vancouver
Owner: District of West Vancouver
Consultant: Onsite Engineering Ltd.
Description: Upgrade of an existing 1200mm diameter concrete pump station to a new 1800 mm diameter FRP station complete with separate valve chamber, new electrical control kiosk, and standby generator. Installation of new forcemain and gravity lines requiring station bypassing was part of the work.
| |

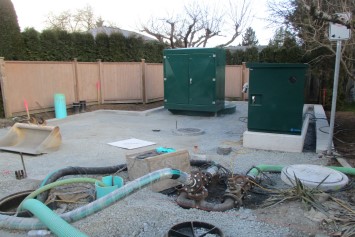

205 Street Sewer Lift Station Upgrades, Township of Langley
Owner: Township of Langley
Consultant: Water Street Engineering
Description: Upgrade of an existing 1800 diameter concrete pump station with a new slip-in 1800 mm diameter FRP pump station complete with built in valve kiosk and new electrical control kiosk. New forcemain and gravity lines requiring bypass was part of the upgrade.
| |
Spruce Grove Sewer Lift Station Upgrade, Whistler
Owner: Resort Municipality of Whistler
Consultant: ISL Engineering & Land Services Ltd.
Description: H2S resistant lining of the Spruce Grove Wet Well with Predl Systems concrete protective liner. Work included bypassing the existing pump station wet well with 8-inch diameter, dri-prime, pumps for approximately three months; deep cleaning of the pump station wet well; installation of Predl panels complete with grouting the void between the existing wall and the installed panels; and replacement of corroded piping and related items.
| |

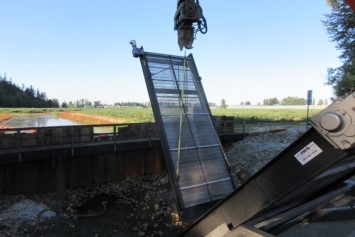

Fenton Trash Rack Systems, Pitt Meadows
Owner: City of Pitt Meadows
Consultant: ISL Engineering & Land Services Ltd.
Description: Installation of moving debris screen onto an existing drainage pump station. Included dewatering of the watercourse with the use of self-installed sheet piling for the channel isolation. Work included new electrical controls for the screens and auxiliary water pump.
| |
Sewage Lift Station Upgrades, Naomi Lift Station No. 24, North Vancouver
Owner: District of North Vancouver
Consultant: Omni Engineering Inc
Description: Upgrade of existing lift station complete with a new valve chamber, wet well mechanical piping, and electrical kiosk modifications. Work also included upgrade to access path including new stairs.
| |

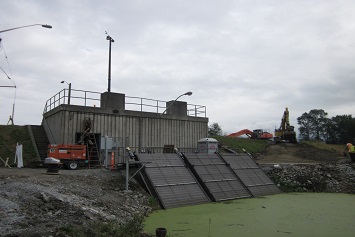

McKechnie Pump Station Debris Screen, Pitt Meadows
Owner: City of Pitt Meadows
Consultant: ISL Engineering & Land Services
Description: Installation of an automated debris screen system. Work involved dewatering a watercourse for the construction of a cast-in-place concrete slab; installation of an automated debris screen, stainless steel piping, electrical conduit, level transducers, and control kiosks.
| |
Sanitary Lift Station Upgrade, 28B Avenue & 216th Street, Langley
Owner: Township of Langley
Consultant: Opus Dayton Knight Consultants Ltd.
Description: Installation of two pumps at 28B Avenue, and two pumps at 216th Street. Upgrading of the two existing pump stations complete with new piping and valve chambers, including relining of 216th Street pump station with cured in place lining.
| |
| |
| |

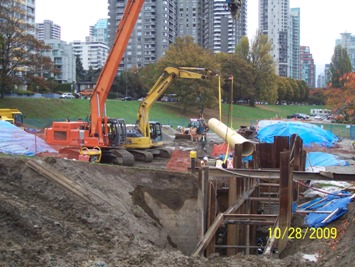

Jervis Forcemain No. 2 Sunset Beach, Vancouver
Owner: Vancouver
Description: Installation of forcemain, including coating and installation of 60m of 914mm steel pipe and appurtenances; set up of a temporary bypass; construction of a cast-in-place concrete junction valve chamber; and fabrication, coating, and installation of 914mm diameter steel tie-in.
| |
Big Bend Pump Station, Surrey
Owner: City of SurreyConsultant : Kerr Wood Leidal Associates Ltd.
Description: Upgrading of the existing sanitary pump station including replacement of all mechanical piping and pumping equipment, along with the removal of asbestos in the electrical building. Work included the installation of a temporary bypass station.
| |
| |
| |
| |
